Cored wire

Cored wire is a thin-walled steel tube filled with a powder filler. It is used in metal smelting to adjust quality characteristics.

We offer various product modifications according to customer needs. Metallurgical cored wire can differ in terms of filler compositions, diameters, profiles and sheath thicknesses, coil sizes, metal frames and orientations of the coil axis in the package.

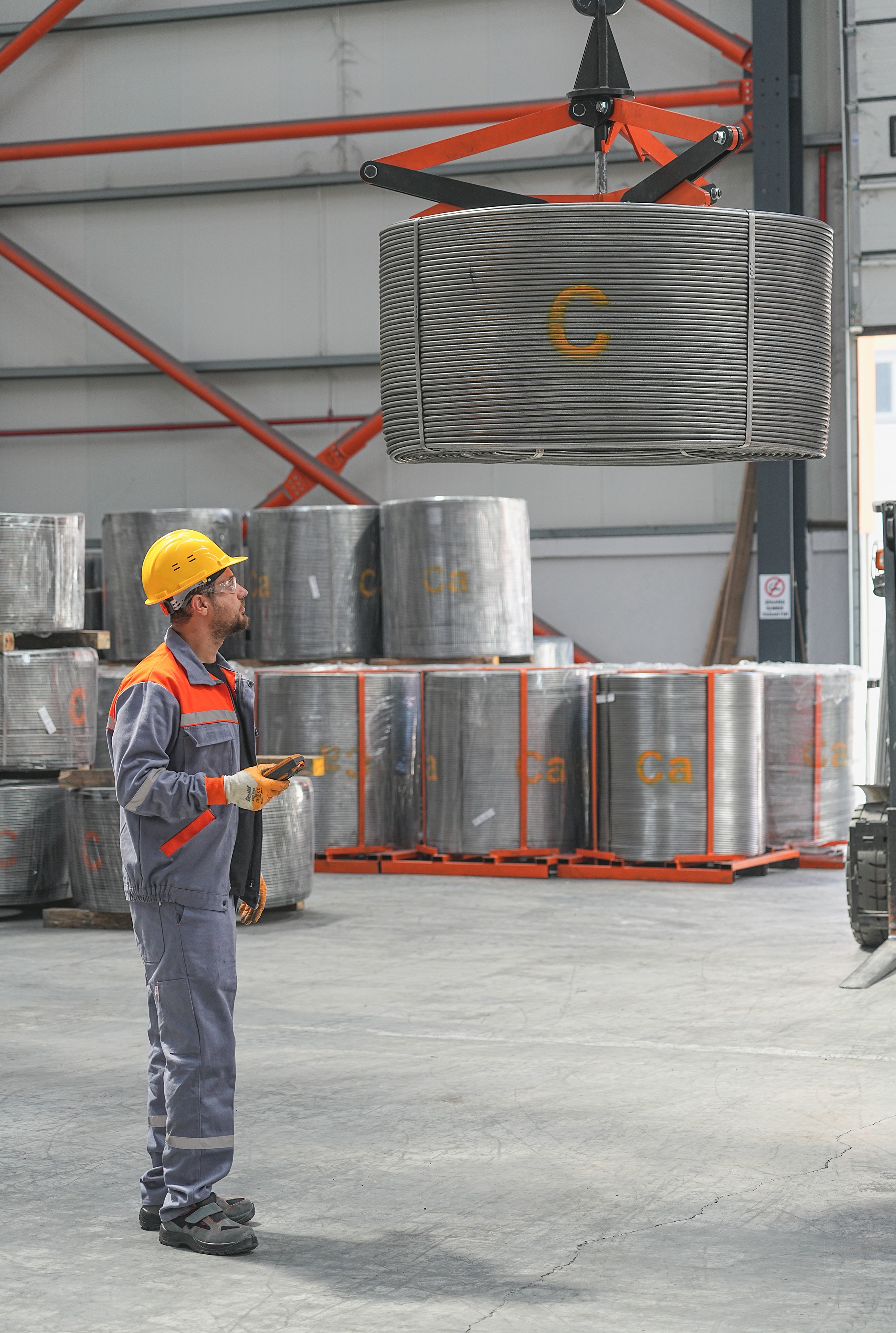

Wire applications

Wire applications

Cored wire is used in virtually all steelmaking workshops and foundries for steel and iron, and is also added to metal ladles at the intermediate or final stage of melting. This allows for precise dosing of fillers, ensures their high and stable absorption and uniform distribution throughout the molten metal, making cored wire the main and reliable element for precision metal processing.

The use of cored wires helps reduce the consumption of materials required to adjust the chemical composition of the metal, alloy and modify steel and cast iron, increase the degree of filler material extraction by the melt by reducing flyaway losses, and improve the environmental safety of the production process.

The most commonly used cored wires

Chemical analysis: Са min 98,5%
Wire diameter: 9 / 10 mm
Steel thickness: 0,35 / 0,4 / 0,5 / 0,60 mm
Inner diameter of the coil: 600 / 700 mm
Outer diameter of the coil: 950 / 1,100 / 1,200 / 1,300 mm
Coil height: 600 / 800 / 1100 mm
Wire length: from 2,500 to 8,200 m
Packing: vertical or horizontal, steel or wooden pallet, steel cage, and PVC stretch film
Chemical analysis: Ca = 28–32%, Si = 58–62%
Wire diameter: 13 mm (options: 9 / 10 / 16 mm)
Steel thickness: 0.35 / 0.4 / 0.5 mm
Inner diameter of the coil: 600 / 700 mm
Outer diameter of the coil: 950 / 1,100 / 1,200 / 1,300 mm
Coil height: 600 / 800 / 1,100 mm
Wire length: from 2,500 to 8,200 m
Packing: vertical or horizontal, steel or wooden pallet, steel cage, and PVC stretch film
Chemical analysis: Ca = 28–30%, Fe = 70–72% або Ca = 38–40%, Fe = 60–62%
Wire diameter: 13 mm (options: 9 / 10 / 16 mm)
Steel thickness: 0.35 / 0.4 / 0.5 mm
Inner diameter of the coil: 600 / 700 mm
Outer diameter of the coil: 950 / 1,100 / 1,300 mm
Coil height: 600 / 800 / 1,100 mm
Wire length: from 2,500 to 8,200 m
Packing: vertical or horizontal, steel or wooden pallet, steel cage, and PVC stretch film
Chemical analysis: Ca = 28–32%, Al = 38–42%, Fe = balance або Ca = 38–42%, Al = 28–32%, Fe = balance
Wire diameter: 13 mm (options: 9 / 10 / 16 mm)
Steel thickness: 0.35 / 0.4 / 0.5 mm
Inner diameter of the coil: 600 / 700 mm
Outer diameter of the coil: 950 / 1,100 / 1,300 mm
Coil height: 600 / 800 / 1,100 mm
Wire length: from 2,500 to 8,200 m
Packing: vertical or horizontal, steel or wooden pallet, steel cage, and PVC stretch film
Chemical analysis: Ti = 68–72%
Wire diameter: 13 mm (options: 9 / 10 / 16 mm)
Steel thickness: 0.35 / 0.4 / 0.5 mm
Inner diameter of the coil: 600 / 700 mm
Outer diameter of the coil: 950 / 1,100 / 1,300 mm
Coil height: 600 / 800 / 1,100 mm
Wire length: from 2,500 to 8,200 m
Packing: vertical or horizontal, steel or wooden pallet, steel cage, and PVC stretch film
Chemical analysis: C min 98%
Wire diameter: 13 mm (option: 9 / 10 / 16 mm)
Steel thickness: 0.35 / 0.4 / 0.5 mm
Inner diameter of the coil: 600 / 700 mm
Outer diameter of the coil: 950 / 1,100 / 1,300 mm
Coil height: 600 / 800 / 1,100 mm
Wire length: from 2,500 to 8,200 m
Packing: vertical or horizontal, steel or wooden pallet, steel cage, and PVC stretch film
Chemical analysis: S min 99%
Wire diameter: 13 mm (option: 9 / 10 / 16 mm)
Steel thickness: 0.35 / 0.4 / 0.5 mm
Inner diameter of the coil: 600 / 700 mm
Outer diameter of the coil: 950 / 1,100 / 1,300 mm
Coil height: 600 / 800 / 1,100 mm
Wire length: from 2,500 to 8,200 m
Packing: vertical or horizontal, steel or wooden pallet, steel cage, and PVC stretch film
Chemical analysis: Mg 15–30%, Si = 44–50%
Wire diameter: 13 mm (option: 9 / 10 / 16 mm)
Steel thickness: 0.35 / 0.4 / 0.5 mm
Inner diameter of the coil: 600 / 700 mm
Outer diameter of the coil: 950 / 1,100 / 1,300 mm
Coil height: 600 / 800 / 1,100 mm
Wire length: from 2,500 to 8,200 m
Packing: vertical or horizontal, steel or wooden pallet, steel cage, and PVC stretch film
Chemical analysis: Mn 72–85 %, Si max 2%, C max 2%
Wire diameter: 13 mm (option: 9 / 10 / 16 mm)
Steel thickness: 0.35 / 0.4 / 0.5 mm
Inner diameter of the coil: 600 / 700 mm
Outer diameter of the coil: 950 / 1,100 / 1,300 mm
Coil height: 600 / 800 / 1,100 mm
Wire length: from 2,500 to 8,200 m
Packing: vertical or horizontal, steel or wooden pallet, steel cage, and PVC stretch film

Ferrovanadium —  FeV
Chemical analysis: V = 75–78%

Ferroboron —  FeB
Chemical analysis: B = 17–20%

Aluminium —  Al
Chemical analysis: Al min 97%

Wire diameter: 13 mm (option: 9 / 10 / 16 mm)
Steel thickness: 0.35 / 0.4 / 0.5 mm
Inner diameter of the coil: 600 / 700 mm
Outer diameter of the coil: 950 / 1,100 / 1,300 mm
Coil height: 600 / 800 / 1,100 mm
Wire length: from 2,500 to 8,200 m
Packing: vertical or horizontal, steel or wooden pallet, steel cage, and PVC stretch film

INWIRE cored wire meets the following requirements

Uniform filling along the length of 1 m
Sheath integrity
Quality and strength of the longitudinal lock
Quality of winding and coil packaging
CEM07541

Product quality

To ensure quality, we cooperate with certified laboratories that provide a full range of laboratory tests.
All INWIRE products undergo three stages of inspection:

To provide confirmation of the quality of our products to our customers, we can supply the first batch of cored wire for testing and products tailored to individual customer needs.

01
Incoming inspection of raw materials
during which we check their chemical and fractional composition.
02
Intermediate inspection of wire filling
Online inspection of wire filling (g/m) during the winding process (laser filling inspection in conjunction with strain gauges).
03
Final inspection of the finished product
checking the quality of the filling (g/m) and the quality of the lock closure.

Compliance with international ISO standards
